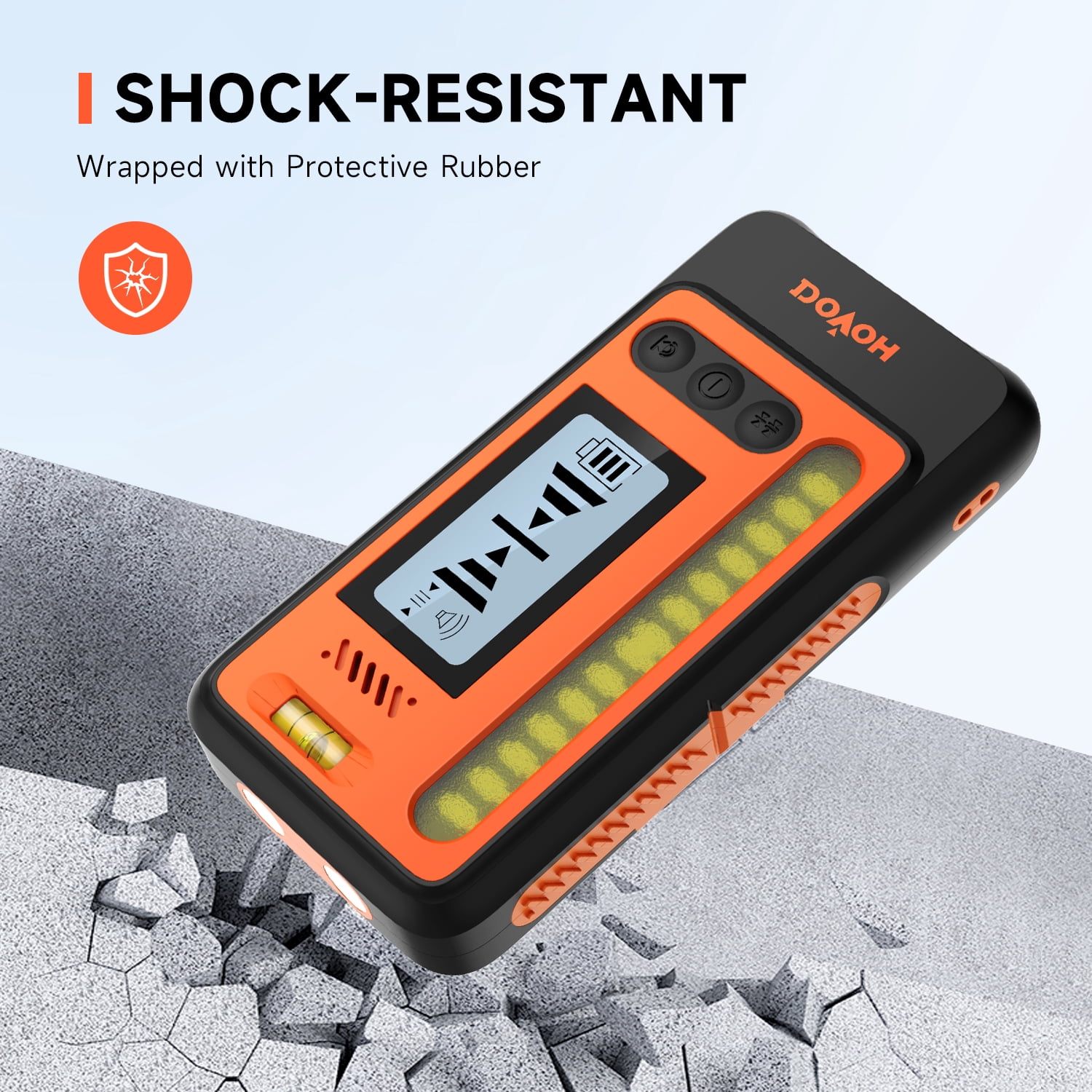

DOVOH High Accuracy Laser Level Receiver : Dual LCD Display, Loud Speaker, 197 ft in Sunlight, IP54 Shock Resistant, DR1

DOVOH DR1 receiver is compatible with all DOVOH laser levels include H3-360G, P3-360G, P4-360G, K3-360G, K4-360G, C2-120G. Generally it is also compatible with other brands of laser level with 10KHz frequency pulse.

• 【Important Notice】If you use this receiver with a laser level from a brand other than DOVOH, please ensure that the laser level pulse frequency is 10 KHz, if it is not, the receiver will not be compatible. Also, please make sure the laser level is working on Pulse Mod
• 【Works in Sunlight】DOVOH DR1 Laser Receiver is engineered to function efficiently in bright sunlight, ensuring precise and reliable signal detection even in outdoor environments. The working range is up to 400ft when used with DOVOH H3 high power laser level

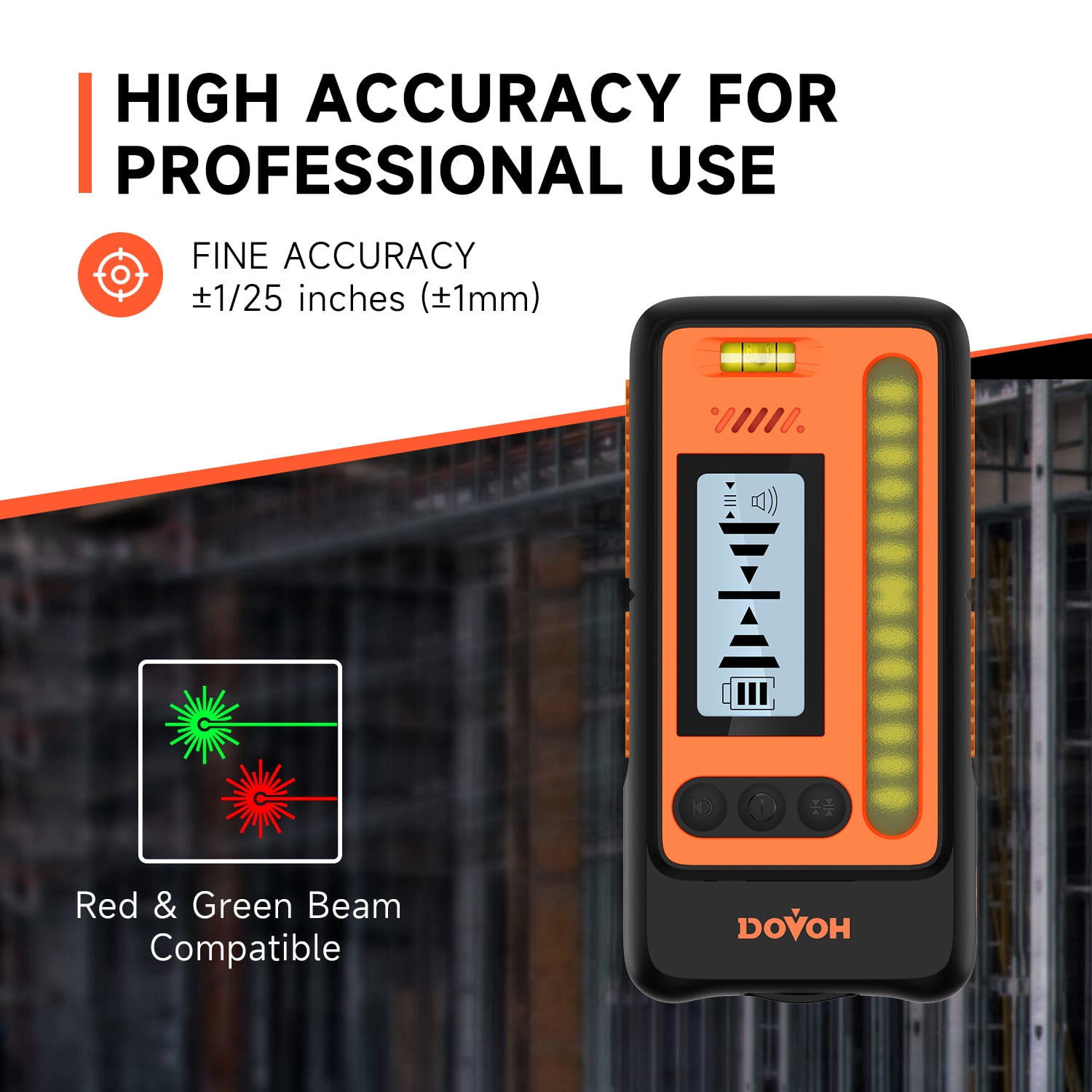

• 【Switchable Accuracy】The DOVOH Laser Level Receiver features exceptional precision with a fine accuracy of ±1mm. It also offers a switchable coarse accuracy of ±3mm, catering to the diverse requirements of various tasks. NOTE: The accuracy varies with distance, as the distance increases, the laser line becomes thicker, resulting in reduced accuracy.
• 【Red and Green Beam Compatibility】DOVOH Laser Level Detector is compatible with both red and green laser beams at a 10KHz frequency. It works seamlessly with all DOVOH laser levels.

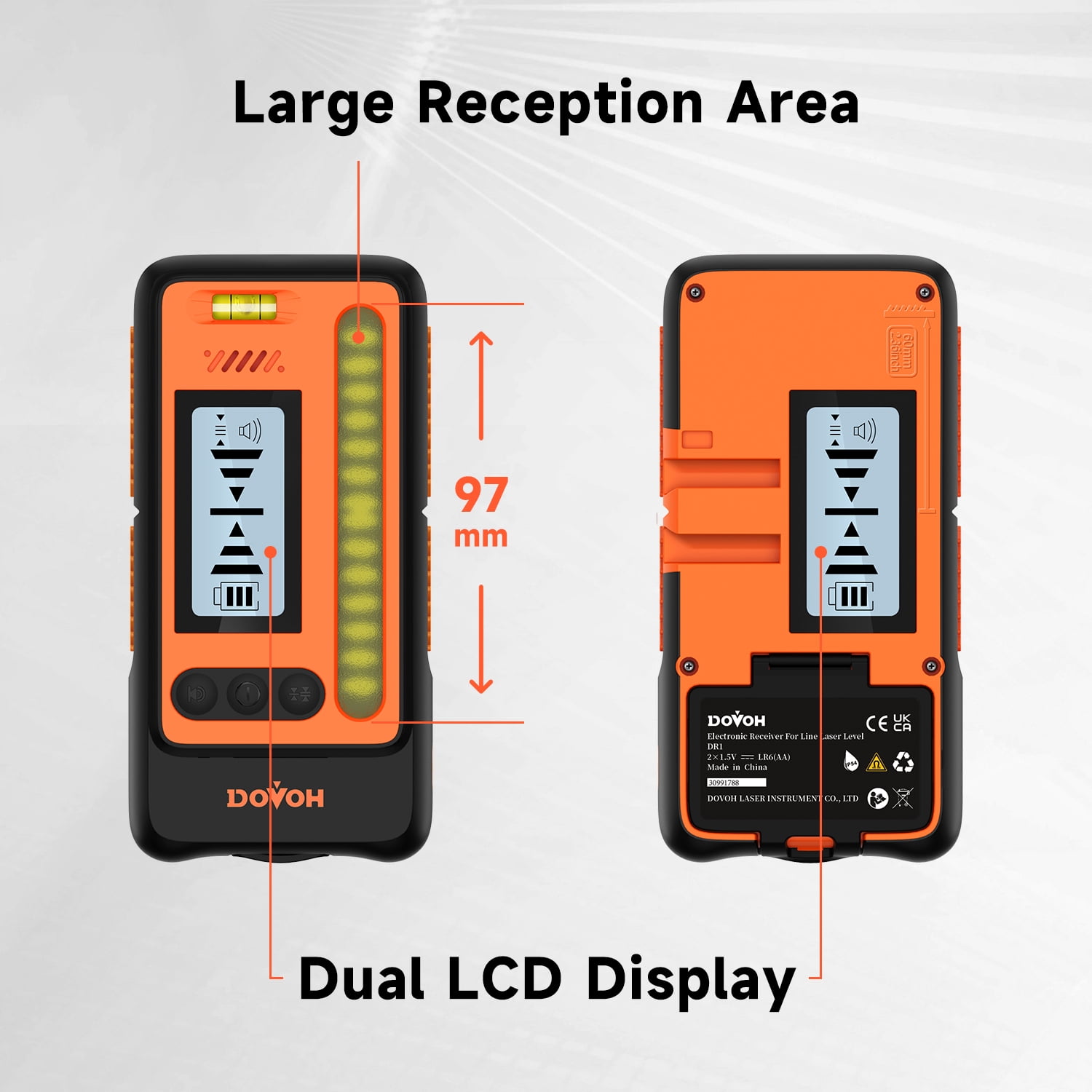

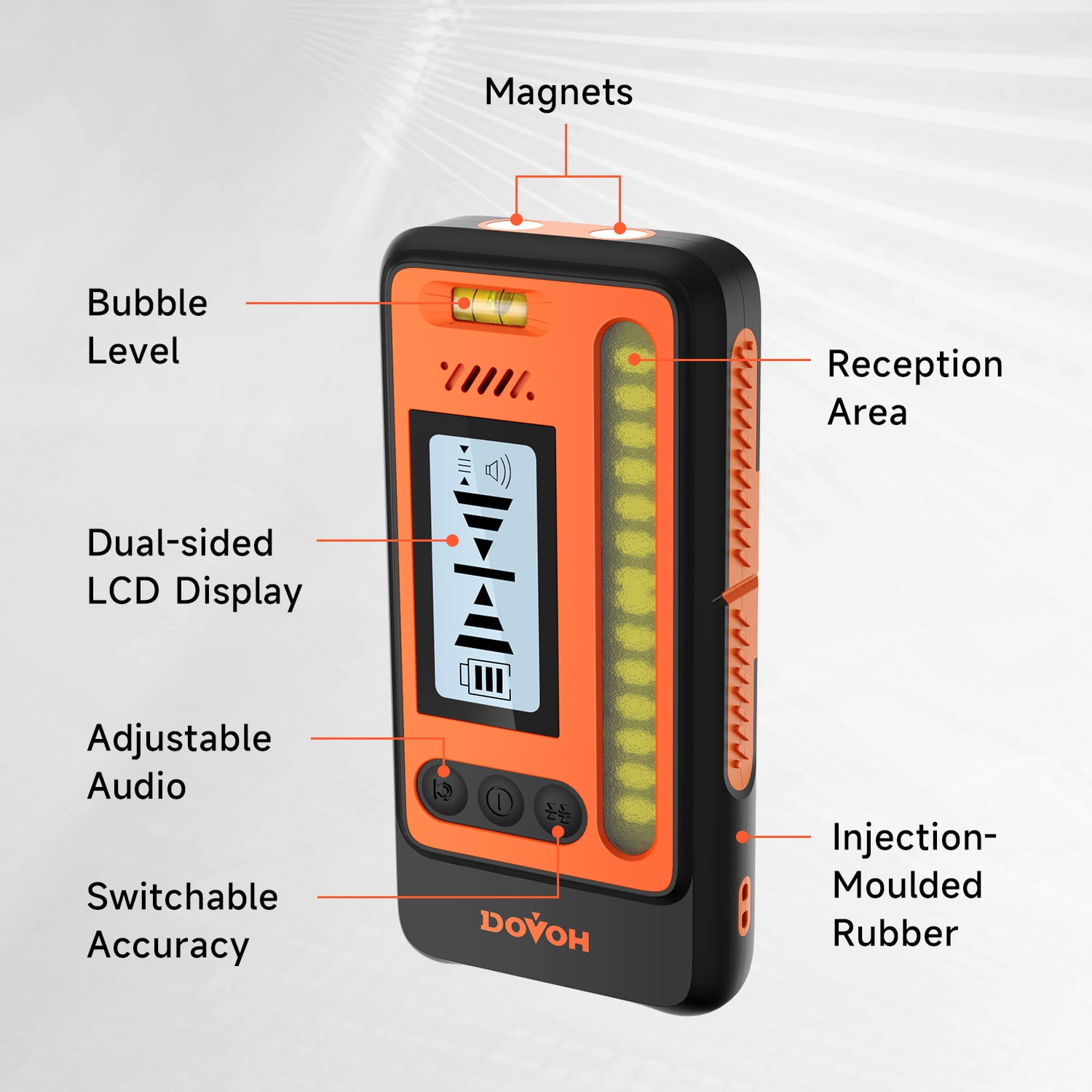

• 【Large Reception Area & Dual LCD Display】This Laser Level Receiver featuring a 97mm extra-large reception area, this receiver easily detects laser lines over long distances. It is equipped with dual LCD displays for convenient readings from both sides.

• ▶Specification

  Model	DR1
  Working Range	5-120m (Depends on laser's power)
  Fine Accuracy	±1mm
  Coarse Accuracy	±3mm
  Detect Pulse Frequency	10 KHz
  Batteries	2×1.5V LR6(AA) (Included)
  Approx. Operating Time	14h

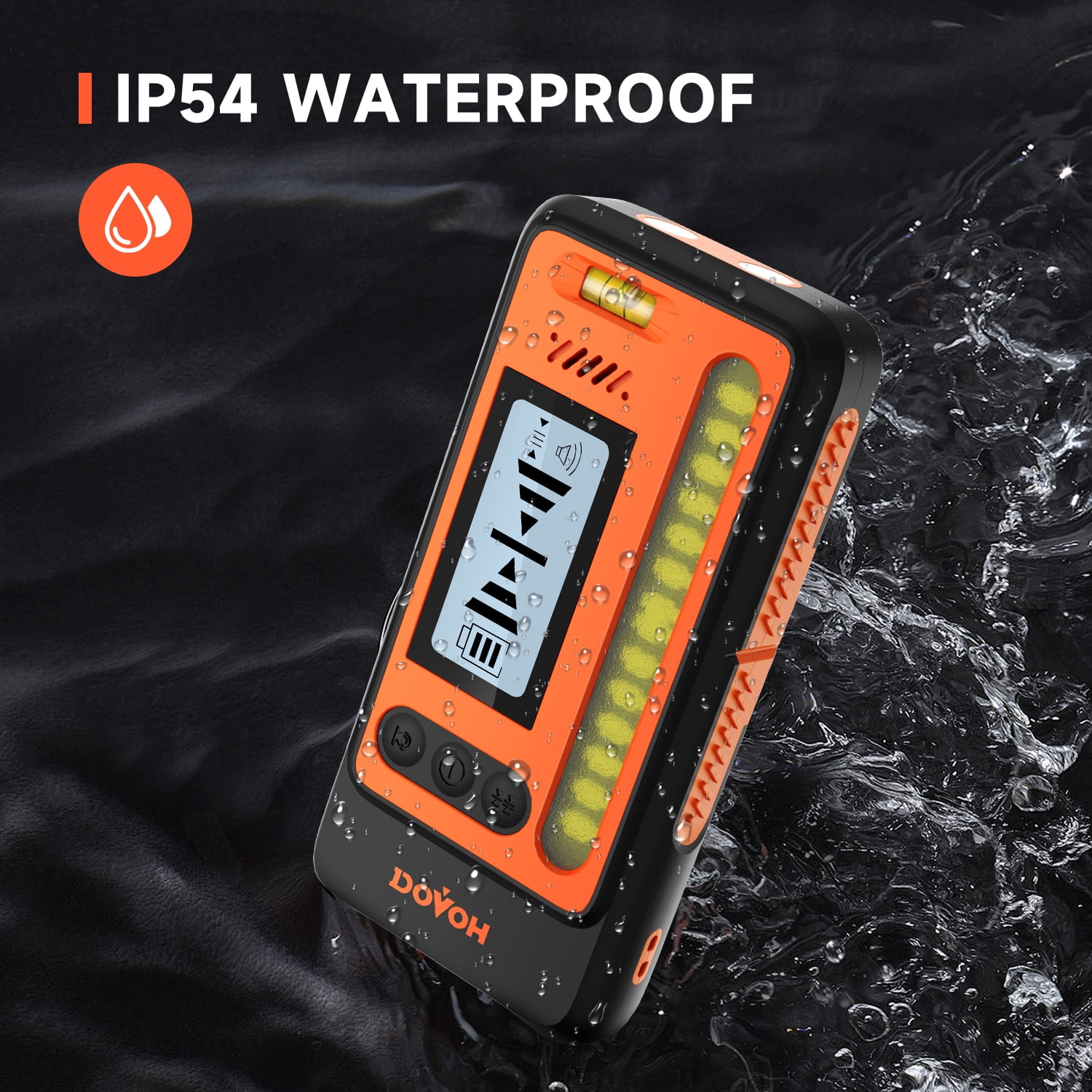

  Protection Rating	IP54
  Reception Angle	90°

• ▶ Packing List
  1 x DR1 Laser Level Receiver
  1 x Protective Pouch
  1 x User Manual
  2 x Alkaline Batteries
  1 × Heavy Duty Clamp
