U9 ViewHD Latest HDMI v2.0b 18Gbps 4:4:4 Audio Extractor | RCA L/R Stereo Analog Audio Output SPDIF Toslink Optical Dolbi Digital Plus Audio 4K@60Hz HDR Dolbi Vision HDCP 2.2 ARC | Model: UAEP
US$7.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by aceelement.com.my
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$7.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by aceelement.com.my
Free 30-day returns Details
Product details
| Management number | 239262447 | Release Date | 2026/07/14 | List Price | US$7.98 | Model Number | 239262447 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

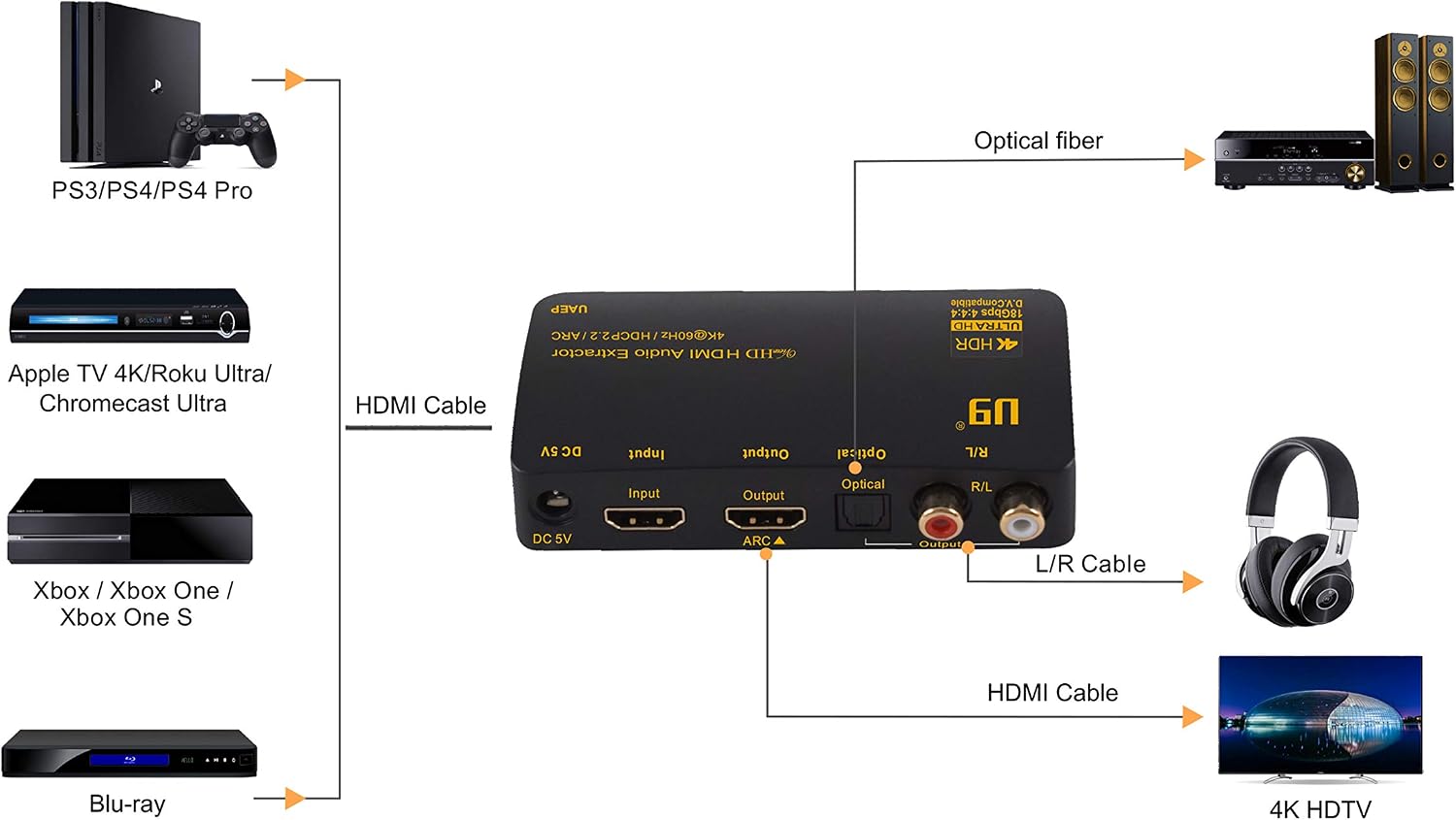

- UAEP is a true HDMI 2.0b 4K@60Hz 18Gbps 4:4:4 HDMI Audio Extractor, supports ARC and CEC. (When using Xboxc Series X, please make sure to use 4K@60Hz, not 4K@120Hz.) The HDMI input of the UAEP is to be connected to the HDMI output of an HDMI source, such as a Blu-ray player; the HDMI output of the UAEP is to be connected to the HDMI (ARC) input of the TV.
- One HDMI Input to One HDMI Audio and Video Output + SPDIF Toslink Optical Output and RCA L/R Stereo Audio Outputs. HDMI output has the same video and audio signal as the HDMI input signal. HDMI Output supports certified HDMI v2.0 18Gbps cable up to 15ft, for guaranteed performance. Please use premium quality Toslink cable for DD+ application, because all Toslink cables can support Dolbi Digital /DTS 5.1CH audio, but only the best ones can support DD+.
- Toslink Optical Output supports audio formats up to DD&DTS 5.1CH and Dolbi Digital Plus, RCA L/R Audio Output supports HDMI stereo 2CH PCM/LPCM audio input, RCA L/R output does not support HDMI audio formats higher than stereo, when HDMI input audio is stereo both Toslink and RCA L/R outputs have audio.
- Supports HDMI ARC function: Use the ARC button to enable/disable ARC mode, in ARC mode the HDMI ARC audio signal is available from the optical audio output, ARC audio is not supported by RCA L/R output. ARC audio typically uses DD5.1CH AC3 format, a Dolbi Digital receiver with optical input is needed for ARC application and the TV must have an HDMI ARC port. Connect the HDMI output port of the UAEP to the HDMI ARC input port of the TV, connect the optical port of the UAEP to receiver.
- UAEP model has three audio EDID settings: "Pass" to use TV's speaker for audio, "2CH" to use RCA L/R stereo analog output, "5.1CH" to use Toslink output with a Dolbi Digital surround receiver. In the 5.1CH mode setting, if the HDMI source can support Dolbi Digital Plus / DD+, then it will use DD+, but if your receiver or optical cable doesn't support DD+, please manually disable DD+ in the HDMI source. This model works with AppleTV, FireTV, Shield nicely, but does not work with Roku.
| UPC | 608819810744 |
|---|---|
| ASIN | B083W8YR91 |
| Model | UAEP |
| Interface | HDMI |
| Brand Name | U9 |
| Part Number | UAEP |
| Manufacturer | U9LTD |
| Material Type | Plastic |
| Number of Pins | 26 |
| Number of Channels | 2 |
| Included Components | 100V-240V AC to 5V1A DC power adapter with US plug, User Manual |
| Warranty Description | One Year Replacement Warranty |
| Global Trade Identification Number | 00608819810744 |
